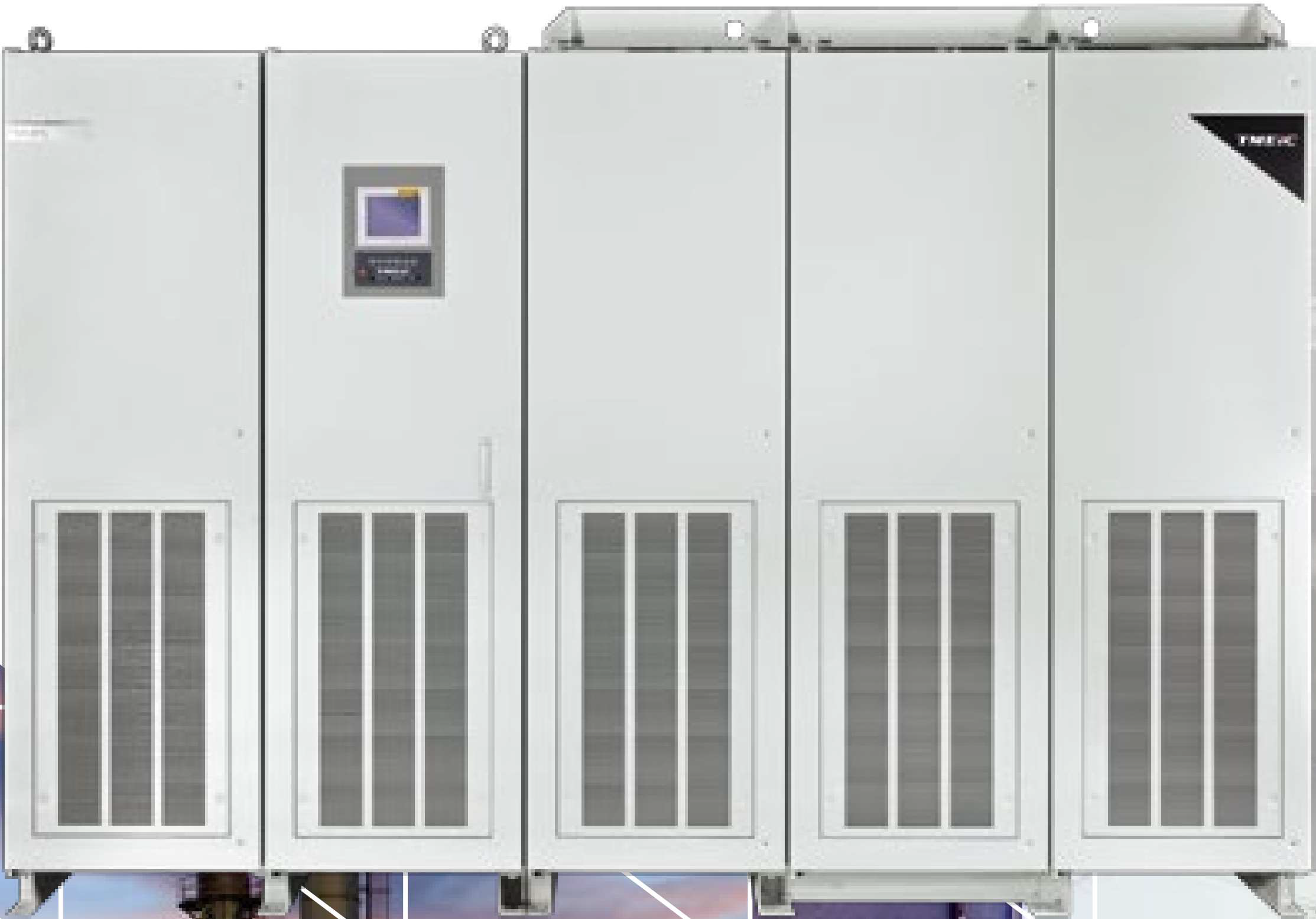

TMEIC UPS
TMEIC UPS
- All-IGBT( CSTBT- Carrier stored trench bipolar transistor ) – Innovative and Patented Concept.
- Greenest efficiency (AC-AC) of >96% in Double conversion Mode and 98.5% in Smart Drive Mode.
- TMEIC UPS design uses AC & DC capacitors with a very long lifetime , in order to make themselves free from maintenance & replacement for 15 years.
- High speed digital control to supply stable power to the critical load even with 100% unbalance load & with regenerative type loads.
- Modular & redundancy with each UPS module features its own static bypass and control circuitry.
- Modular design flexibility and redundancy.
- An IGBT DC-to-DC Chopper charging circuit, extending battery and capacitor life.
- A Hybrid Static-Bypass Switch.
- Complete Front-Access for Installation & with multiple cable entry points.
Feature
Catalogue
Feature
TMUPS – Reliability & Performance by design
Innovative 3-level Conversion Technology reducing the switching loss by 56%
- First of its kind since 2008
- Higher System reliability & performance
- Lower voltage stresses on power semiconductors device & capacitors
- Enhanced component life by limiting internal temperature rise
Next generation robust proprietary Power Module
Carrier Stored Trench Bipolar Transistor
- Lower the VCE lower the saturation loss.
- Robust – more short circuit safe operating area
- High thermal stability in most demanding environments
Advanced Control System for optimum performance
- Current minor loop Feed forward control System-
- Three phase independent control –Unbalanced load
- Excellent short circuit protection & control
- Advanced control- Automatic Phase sequence correction
TMUPS increases availability
Reliability by design – Long MTBF
15+ years design life (CSTBT& Capacitors)
- No need of replacement
Modular SPDs at mains & bypass input
- Protects load and UPS components from SURGES
Faster& Precise control system
- Excellent short circuit withstand capacity
- Superior dynamic step load& Transfer performance
Reliable parallel operation-Scalable
- Parallel operation upto 10.5 MW
- Adapts feed forward control with current minor loop – to avoid cross current failures
TMUPS – Less MTTR & Scalable upto 10.5MW
Serviceability by design – Less MTTR
Modular construction
- No Compromise on reliability
- Quick recovery
- Built in SD Card records any unexpected events – RCA & quick resolution
24×7 Support closer to customer
- Qualified & factory trained Engineers
- Quick response time
- Regional parts depot
