EnerRocket ESC 100-12 FR | 12V 100Ah Long Life SMF VRLA Battery
ESC 100-12 FR – 12V 100Ah Long Life SMF VRLA Battery
- 12V 100Ah SMF VRLA battery from the Long Life Series, rated at the 10-hour discharge rate.
- 12-year design life as per Eurobat standards.
- Flame-retardant UL94 V-0 ABS container as standard for enhanced safety in critical installations.
- Absorptive Glass Mat (AGM) system with heavy-duty, highly optimized grids.
- Low internal resistance of under 5.7 mΩ supporting fast charging.
- Maximum discharge current of 900A for 5 seconds; short circuit current of 2500A.
- Charge acceptance of 30A for quicker recovery between outages.
- Front-access M8 terminals for convenient rack and cabinet installation.
- Low self-discharge — 97% capacity retained after 1 month of storage at 20°C.
- Non-spillable, sealed, maintenance-free construction with gas recombination technology.
- Compliant with IEC 60896 Part 21 & 22; ISO 9001, UL and CE certified.
- Suitable for UPS, telecommunication, fire alarm & security, and medical equipment.
Feature

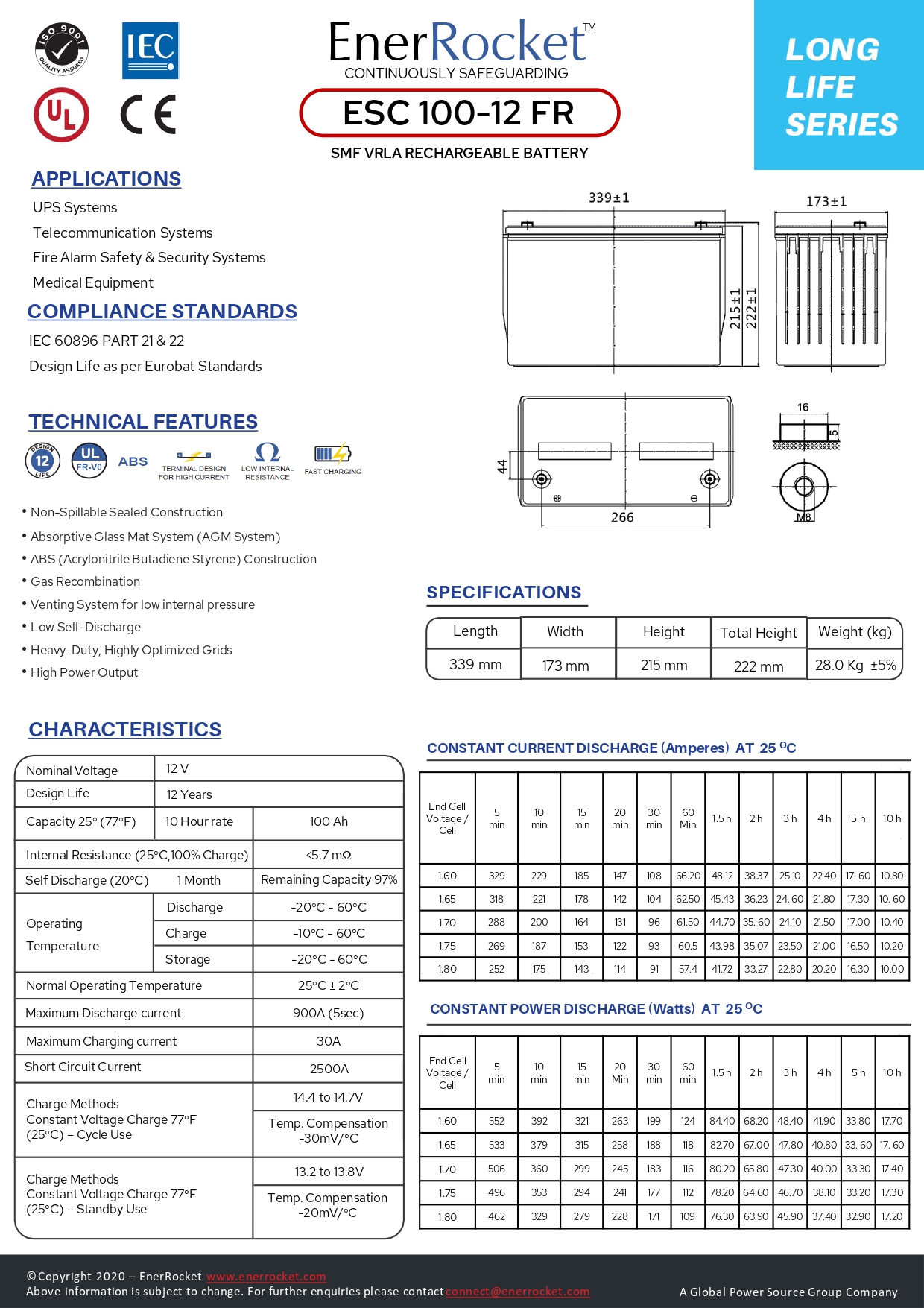

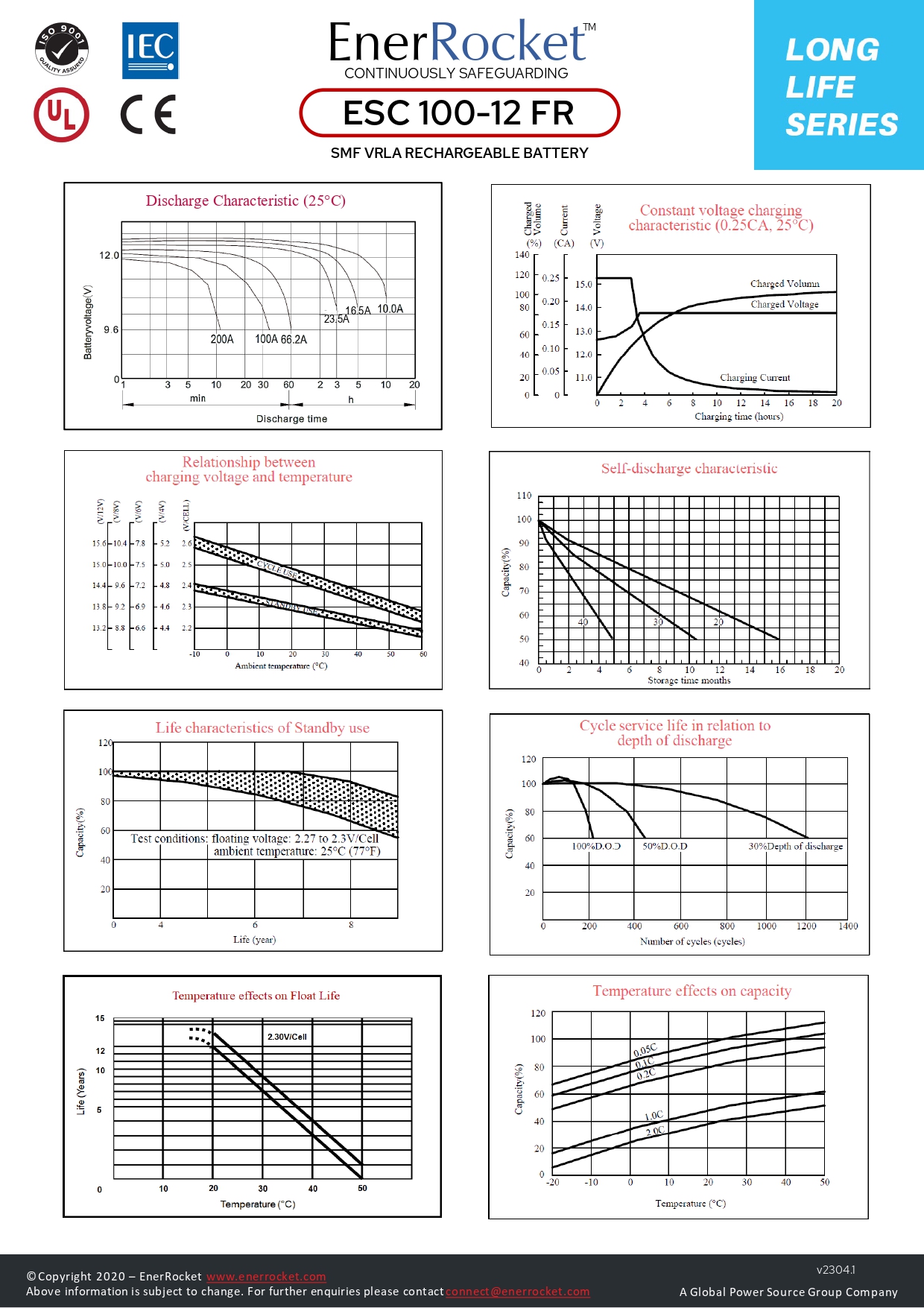

Catalogue
Feature
Technical Features
- Non-spillable sealed construction
- Absorptive Glass Mat System (AGM System)
- ABS (Acrylonitrile Butadiene Styrene) construction, flame-retardant UL94 V-0 rated
- Gas recombination technology
- Venting system for low internal pressure
- Low self-discharge
- Heavy-duty, highly optimized grids
- High power output with terminal design for high current
Applications
- UPS Systems
- Telecommunication Systems
- Fire Alarm Safety & Security Systems
- Medical Equipment
Electrical Characteristics
- Nominal Voltage: 12V
- Capacity (25°C / 77°F): 100Ah at 10-hour rate
- Design Life: 12 Years (as per Eurobat standards)
- Internal Resistance (25°C, 100% charge): under 5.7 mΩ
- Self Discharge (20°C): 97% remaining capacity after 1 month
- Maximum Discharge Current: 900A for 5 seconds
- Maximum Charging Current: 30A
- Short Circuit Current: 2500A
Charging Parameters
- Cycle Use (constant voltage, 25°C / 77°F): 14.4 to 14.7V, temperature compensation −30mV/°C
- Standby Use (constant voltage, 25°C / 77°F): 13.2 to 13.8V, temperature compensation −20mV/°C
Operating Temperature Range
- Discharge: −20°C to 60°C
- Charge: −10°C to 60°C
- Storage: −20°C to 60°C
- Normal Operating Temperature: 25°C ± 2°C

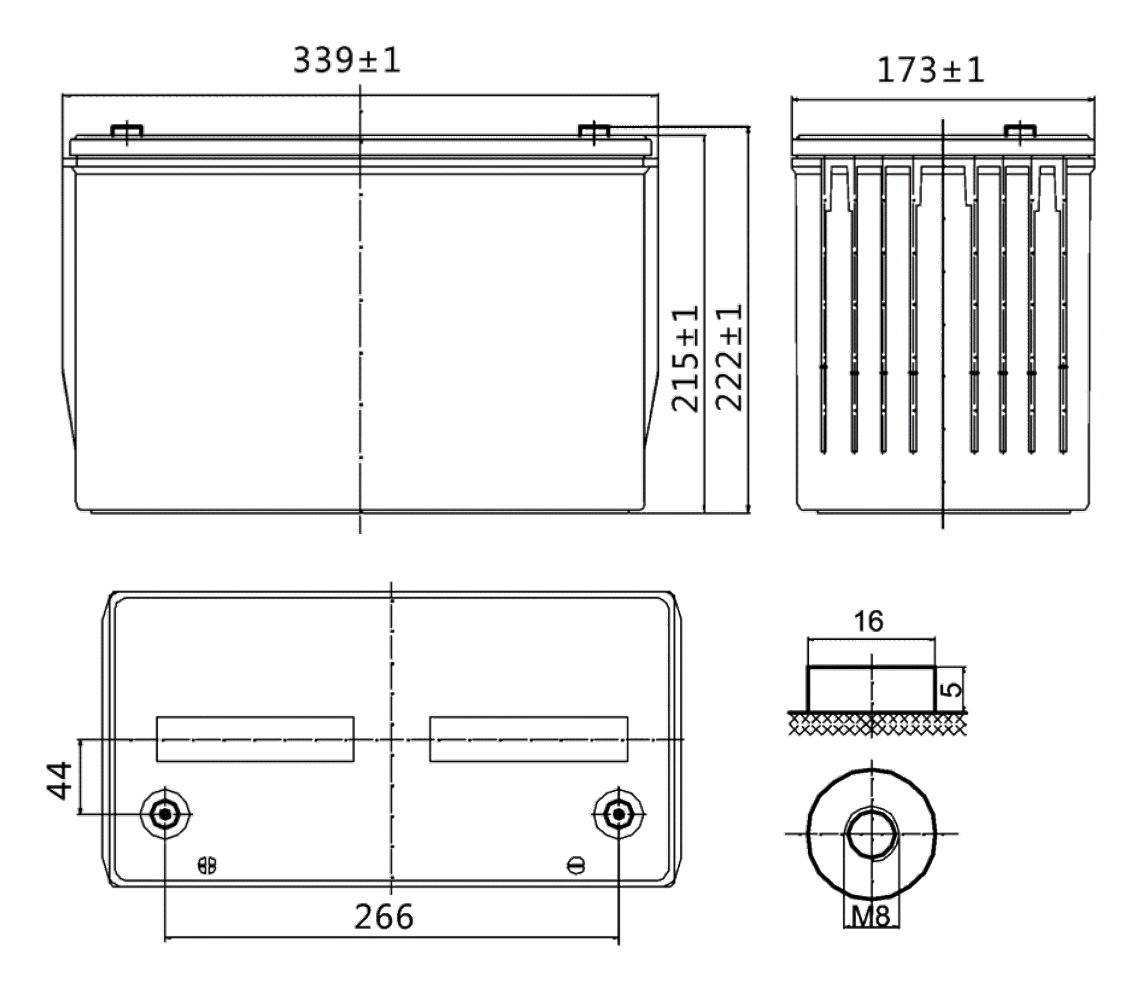

Physical Specifications
- Length: 339 mm
- Width: 173 mm
- Height: 215 mm
- Total Height: 222 mm
- Weight: 28.0 kg (±5%)
- Terminal: M8 threaded insert, 16 mm base
Compliance & Certification
- IEC 60896 Part 21 & 22
- Design life as per Eurobat Standards
- ISO 9001 Quality Assured
- UL Listed / UL FR-V0 flame-retardant container
- CE Marked
Catalogue
